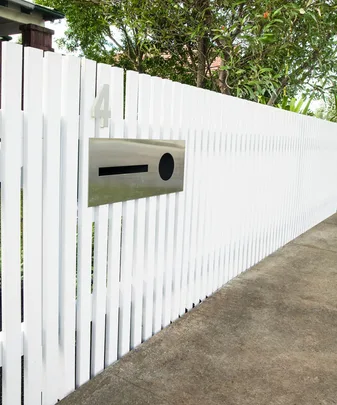

How to build a picket fence and letterbox

Smarten up your picket fence with a sleek and shiny letterbox.
Better homes and Gardens

Gather your supplies
Fence posts – 1.4m x 90 x 90mm H4 treated pine
Fence rails
Letterbox frame
Diagonal brace – 90 x 42mm primed treated pine
Pickets – 42 x 18mm primed treated pine
Letterbox

Advertisement

You’ll also need
Crowbar; post hole digger; spirit level; quick set concrete; stringline; drill and bits; 100mm batten screws; nail gun and nails; 200mm T Hinges; latch; exterior wood filler; sandpaper; Dulux Weathershield Semi-Gloss Acrylic in Highgate; painting equipment

Here’s how

Step 1
Unbolt existing fence panels and remove. Use crowbar to break concrete around posts and remove.

(Credit: Better homes and Gardens)
Advertisement

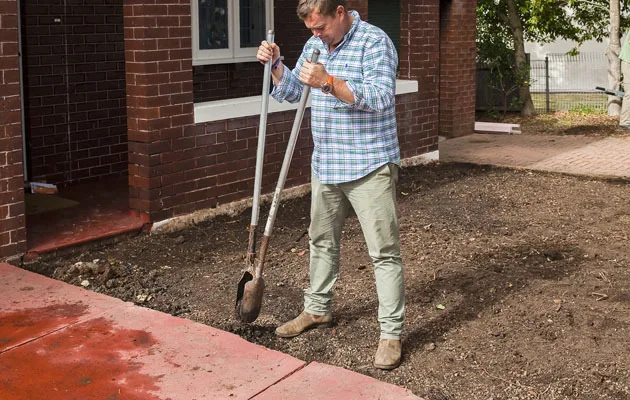

Step 2
Use post hole digger to dig 400mm deep holes for posts at each end of fence line and where gate will be. Evenly space other posts between these so they do not exceed 1.8m apart.

(Credit: Better homes and Gardens)

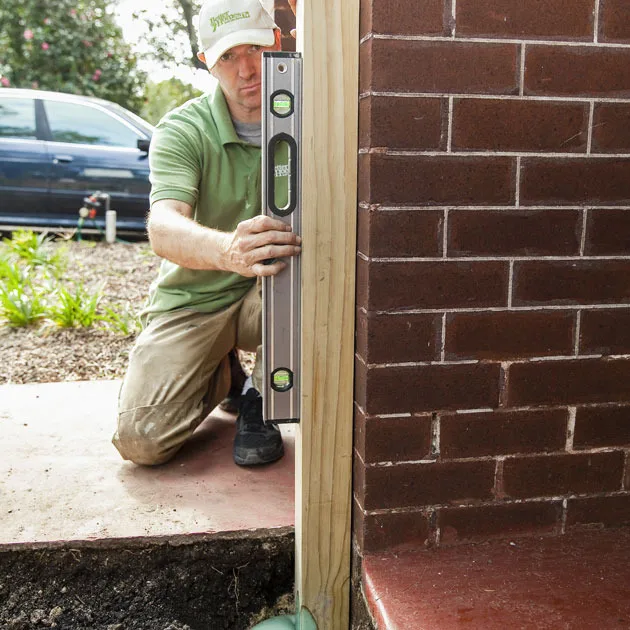

Step 3
Place post in 1 end hole. Check top is 1 metre above ground and use spirit level to make plumb. If your fence borders a footpath or boundary, allow for 60mm between fence post and boundary line. Mix quick set concrete following pack instructions and pour into hole around post. Repeat for other end post.

(Credit: Better homes and Gardens)
Advertisement

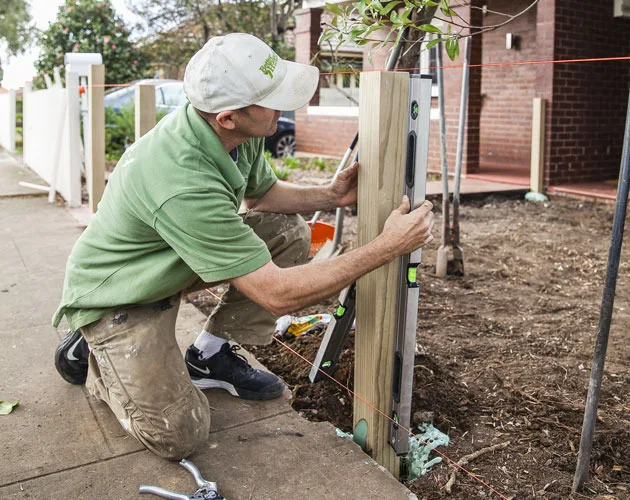

Step 4
Run stringline between end posts at bottom and along top corner of posts. Set other posts in position (see Step 3) so they meet these stringlines and are plumb.

(Credit: Better homes and Gardens)

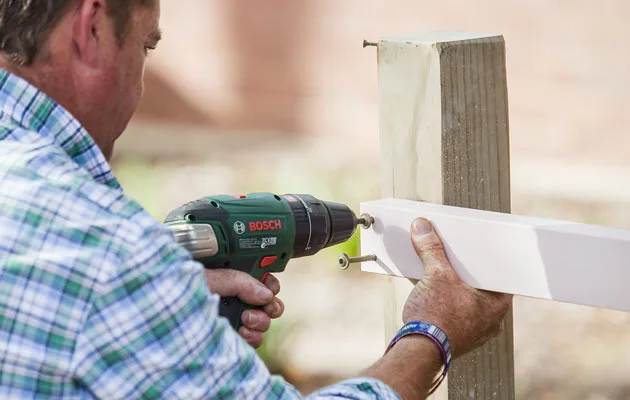

Step 5
Mark a point on each post 150mm and 760mm from top. On posts adjacent to where gate will be, mark a line 18mm from side of post. Cut rails to length. Predrill and screw top and bottom rails into posts using 100mm batten screws so the top of rails meets marked lines and end meets 18mm line at gate posts.

Step 6
To support letterbox, cut length to fit vertically between top and bottom rails to suit width of letterbox. Cut a piece to fit horizontally between these to create an opening to match dimensions of your letterbox.

Advertisement

Step 7
Cut pickets to length to fit around letterbox opening and to fit rest of fence run (see Notes).

(Credit: Better homes and Gardens)

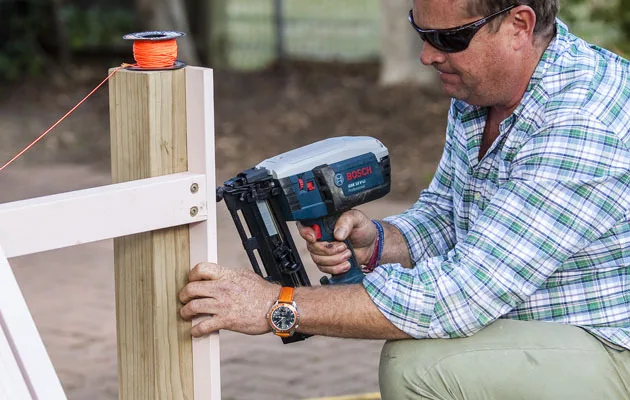

Step 8
At a gate post, place a picket against rail end-grain. Make flush with top of post and use nailgun to nail through picket to top and bottom rails.

(Credit: Better homes and Gardens)
Advertisement

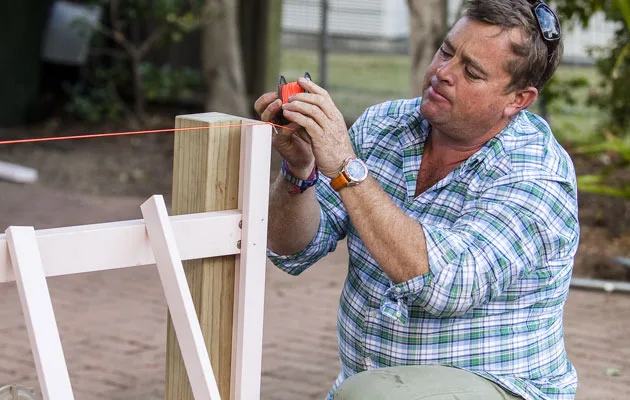

Step 9
Nail next picket on face of rail so its side is flush with the picket fixed in Step 8. Nail another picket to face of rails at other end of this run of fence. Stretch stringline taut between tops of these pickets as a guide for those in between.

(Credit: Better homes and Gardens)

Step 10

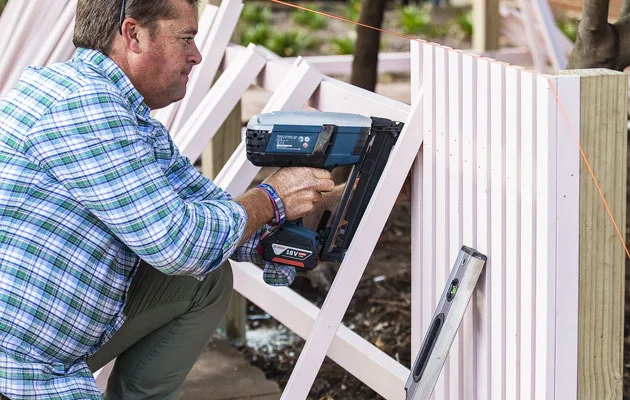

Using a picket on edge as a spacer, place next picket so its top meets stringline. Nail into top rail. Use spirit level to make plumb, then nail into bottom rail. Repeat for remaining pickets, including pickets around letterbox. Occasionally measure fence where you have yet to attach pickets and calculate how many will fit. You may have to adjust space between pickets so you don’t end up with an uneven gap at end of run.

Step 11
Construct a gate frame 10mm narrower than gate opening. Make frame square, then cut and fit a diagonal brace to sit inside frame. Attach 200mm T hinges to gate frame so diagonal brace runs from bottom hinge up to latch side of gate. Screw gate frame to post, then nail pickets to gate frame to match rest of fence. Attach gate latch to gate frame and adjacent post.

Advertisement
(Credit: Better homes and Gardens)

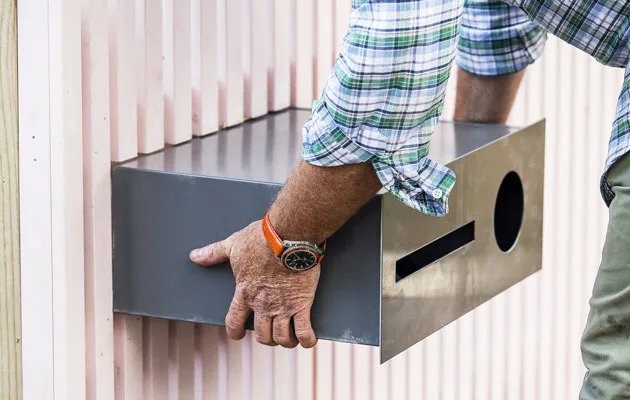

Step 12
Slide in and secure letterbox. Fill all nail holes and sand smooth. Apply 2 coats of semi gloss acrylic, allowing to dry after each coat. Spray painting is the easiest way to do this but you can use a small roller and brush.
