How to build a slatted privacy screen

Transform your garden with a privacy screen.
Loading the player...

Renovating a backyard from plain to a multi-purpose entertaining and relaxing area for different members of the family is a big job. Thankfully, Charlie and Juliet are the prefect couple to take on this challenge with a blend of style and substance. A pergola will add height to a barbecue entertaining area while the rest of the garden is split into different zones that have something for every member of the family to enjoy. Along with some new plants and tidying up of existing ones, this backyard will soon be ready for summer!

Advertisement

For more information, head to HOME – The Burdekin Association

WATCH: How to build a slatted privacy screen

Click here to download the full project on how to build a pergola.

How to build a slatted privacy screen

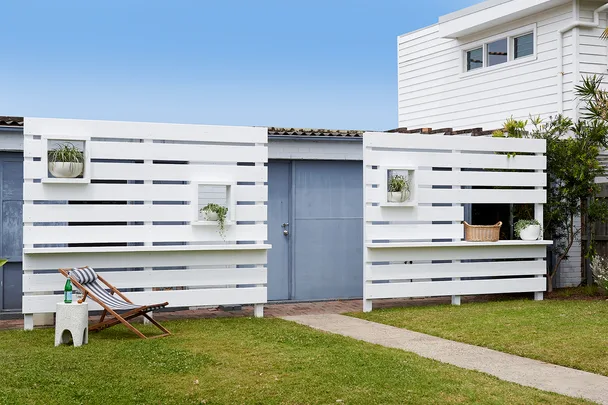

How to build a slatted privacy screen
(Credit: Sue Ferris)
Advertisement

Hide amenity buildings, such as a laundry or a garage, with a screen or two featuring a handy shelf and plant window!

Gather your supplies

  • 200 x 50mm x 3m H4 treated pine sleepers
  • 90 x 90mm x 3m H4 treated pine posts (3)
  • Primer and exterior acrylic paint
  • Blue metal aggregate
  • Quick-set concrete

You’ll also need

  • Tape measure
  • Spray marking paint
  • Stakes
  • Paintbrushes
  • Paint trays and rollers
  • Post hole digger
  • Long spirit level
  • Stringline
  • Nail gun
  • Pavers
  • Clamps
  • Circular saw
  • Drill
  • Drill bits
  • 125mm construction screws
  • Planer
  • Timber filler
  • Sandpaper​

For you to note

  • This screen used 3m sleepers for full slats, which reduced cutting.
  • These steps are for the screen with the laundry opening. To make without it, omit Step 10 and adapt Steps 11-14 to make two picture frame boxes and attach as shown in picture.

Here’s how

Step 1

STEP 1
Step 1 (Credit: Sue Ferris)

Set out for posts using tape measure and spray marking paint. Measurement to outside of end posts is 2960mm to allow for a 20mm slat overhang at either end. The third post is centred.

Step 2

Prime posts and sleepers, let dry. Apply 2 coats of paint to posts and sleepers, leaving to dry after each coat.

Advertisement

Step 3

Use post hole digger to dig post holes to at least 500mm deep. Add a 30-40mm layer of blue metal to base of holes with a small amount of dry concrete mix on top. Set up a stringline for posts.

Step 4

Step 4
Step 4 (Credit: Sue Ferris)

Position posts in end holes and concrete in, using spirit level to check for plumb and stringline to check alignment. Repeat to sink central post.

Step 5

Step 5
Step 5 (Credit: Sue Ferris)
Advertisement

Hammer in stakes about 750mm in front of posts, then attach timber offcuts to stakes and nail to posts as temporary bracing.

Step 6

Step 6
Step 6 (Credit: Sue Ferris)

Position slat supports 300mm in from the outside posts. Here, pavers were used. One flat and one on edge, as this gave an exact height of 150mm for first slat. Position first slat on supports. Check spacings on ends, then position long spirit level on top of slat and bring to level. Clamp at both ends.

Step 7

Step 7a
Step 7 (Credit: Sue Ferris)
Advertisement

Predrill and join first slat to each post with two 125mm screws.

Step 8

Step 7
Step 8 (Credit: Sue Ferris)

Using 50mm timber offcuts as spacers, attach 2 more slats. Remove support and braces.

Step 9

To make shelf, lay a sleeper flat on top of third slat, predrill into slat 50mm in from ends and every 500mm (approx.), then secure with 125mm screws.

Advertisement

Step 10

Step 10
Step 10 (Credit: Sue Ferris)

To make laundry opening, cut a sleeper to fit between centre and end posts on right side. From a sleeper offcut, cut 2 brackets, each 180mm in length, remove a corner with a 45° cut, then chamfer exposed edges using a planer. Position brackets against inside of posts, flush with top of third slat. Predrill through bracket into post and secure with two 125mm screws. Predrill from face of third slat into bracket for 2 more screws, screw in from the front. Position cut sleeper length on top of bracket, predrill and screw through shelf into brackets with 125mm screws.

Step 11

Step 11
Step 11 (Credit: Sue Ferris)

To make ‘picture frame box’, use a circular saw to cut a sleeper into two 550mm lengths for top and base, and two 450mm lengths for sides. Position top and base between sides, predrill then screw through sides with 125mm screws.

Advertisement

Step 12

Cut 2 slats from sleepers to span between end and centre posts on opposite side to laundry opening. Using 50mm spacers, attach slats to posts with 125mm screws.

Step 13

Step 13
Step 13 (Credit: Sue Ferris)

Cut two 200mm slats from a sleeper offcut. Using 50mm spacers, position 1 on fifth slat so the ends align and screw to end post. Using spacers, attach second short slat. Position box frame centred on fifth slat and hard up against short slats. Predrill through box base into fifth slat and secure with three 125mm screws. Predrill and screw through box side into short slats.

Step 14

Step 14
Step 14 (Credit: Sue Ferris)
Advertisement

Measure from side of box frame to opposite end post. Cut 2 slats from sleepers to length with extra 20mm for overhang. Position spacers on fifth slat, sit a slat on top and check for level. Predrill and screw in place. Attach second slat – it won’t requiring levelling as you can add spacers at both ends. Predrill and screw slat into centre and end post. Predrill from inside box into these 2 slats, then secure with screws. Attach second-last full slat then, from inside top of box, predrill into slat and secure with two 125mm screws.

Step 15

Step 15
Step 15 (Credit: Sue Ferris)

Use a slat offcut and spacer to mark top of the last slat on all posts, then cut off tops with a circular saw. You’ll need to make 2 passes, one from the front and one from the back. Position last slat on spacers, it should be flush with the cut post tops, then predrill and screw in place. Prime and apply 2 coats of paint to cut post tops. Fill screw holes with timber filler, let dry, sand and touch-up with paint.
